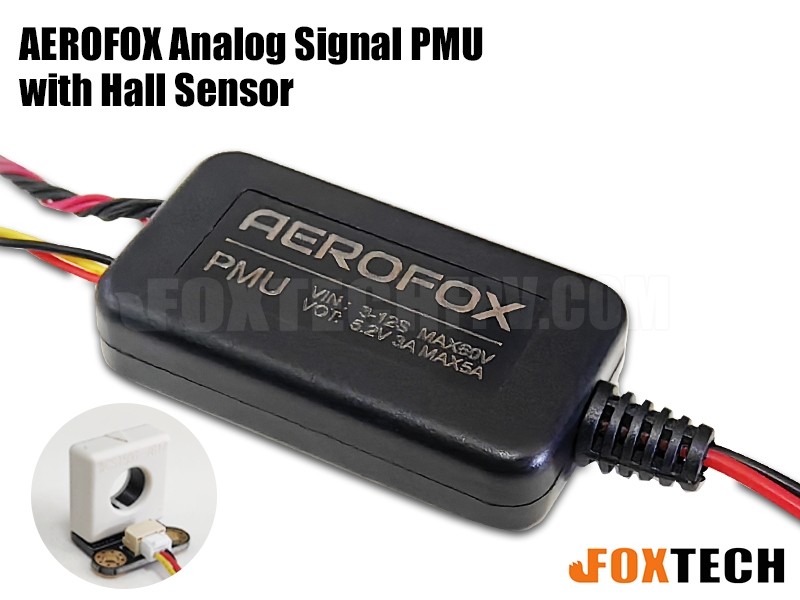

AEROFOX analog signal PMU is a drone power management module, which can be used to accurately measure the voltage and current of the drone’s battery.
The PMU adopts a separated design of the main module and the Hall sensor.
The main module provides 5.2V power supply and high-precision resistance detection of the input power supply voltage.
The Hall sensor is responsible for measuring the current of the tested circuit by non-contact induction. The Hall sensor has a built-in digital processing circuit, reference, and uses various technologies such as segmented linear correction algorithm, static monitoring algorithm, temperature detection compensation algorithm, and PID closed-loop tracking output algorithm to stably output an analog voltage signal with a fixed ratio.
This PMU provides accurate and reliable measurement of current and voltage for drones and other electronic systems, ensuring safe and efficient operation.
Specification:
Main Module:
Voltage Input: 3S-12S
Max Current: 80A
Power Port Output: 5.2V/3A (Max 5A)
Voltage Division Detection: 22V
Hall Sensor:
Power Supply: 5V (±0.3)
Detection Ratio: 60.61A/V
Detection Reference: 0.825V/50A
Your Purchase Includes:
1x AEROFOX Analog Signal PMU with Hall Sensor
