JM30 FHD Video Codec Module

JM30 is a high-definition video encoding and decoding system, including JM30E encoder module and JM30D decoder module. JM30E can convert the video input from HDMI/SDI/AV interface into H.265/H.264 network video stream, and JM30D can decode H.265/H.264 network video stream into HD video, which is outputted to the display through the HMDI interface.

JM30 can be used together with VDC-30 to quickly build a remote wireless HD transmission system and meet the needs of multi-scene video applications. Users can obtain videos through Mission Planner and QGC.

Note: The default interface is HDMI.  If you need SDI interface or buy separately, please click "Live Chat" to contact our sales!

Features:

- H.265 encoding and decoding technology

- Low lag code algorithms

- JM30E supports 1080P60 video input and downward compatibility

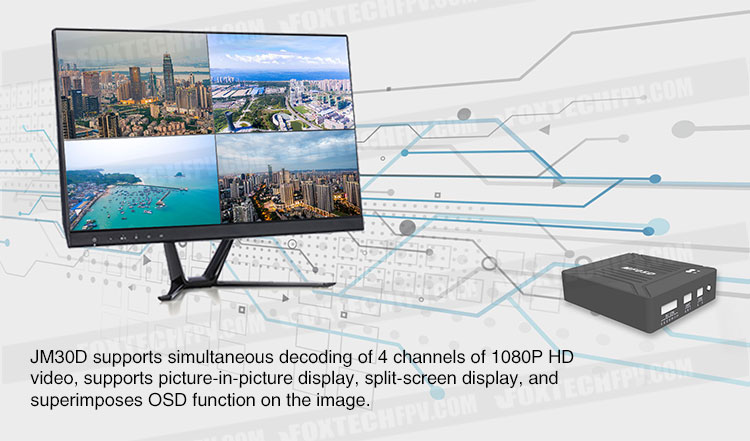

- JM30D supports split-screen display and superimposes OSD function on the image

Specifications:

Appearance

- Size: JM30E  57X 52X 16mm

           JM30D  65X 56X 17mm

- Weight: JM30E  52 g

               JM30D  62 g

Video Performance

- Resolution: 1080P60 downward compatibility

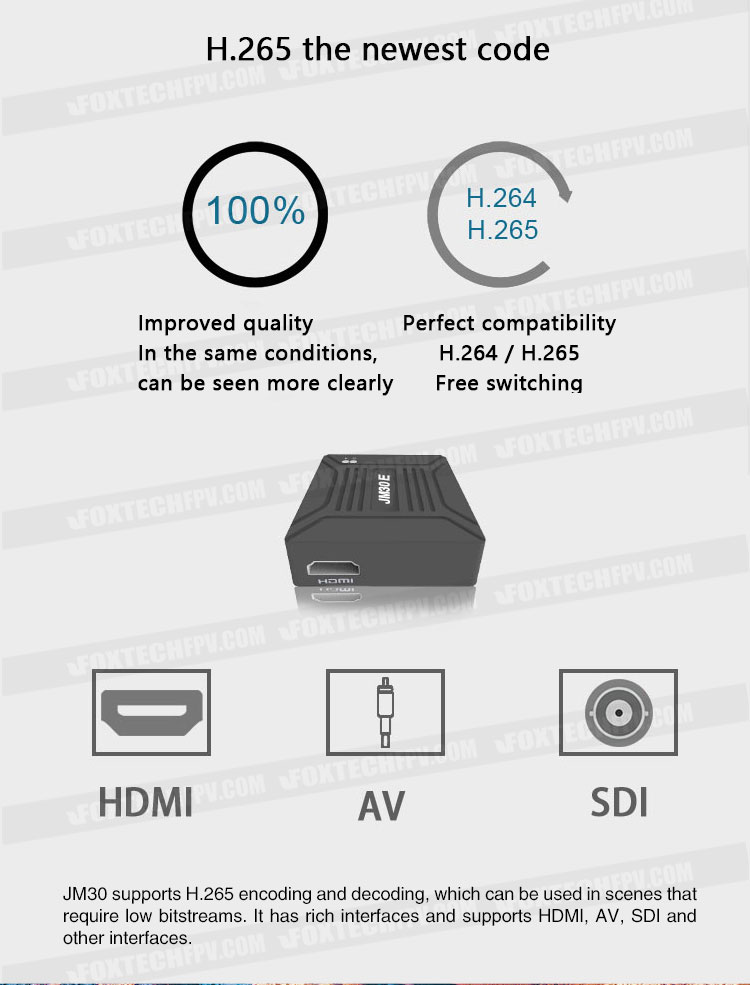

- Codec: H.264/H.265

- Video Bitrate: 500 kbps~5 Mbps

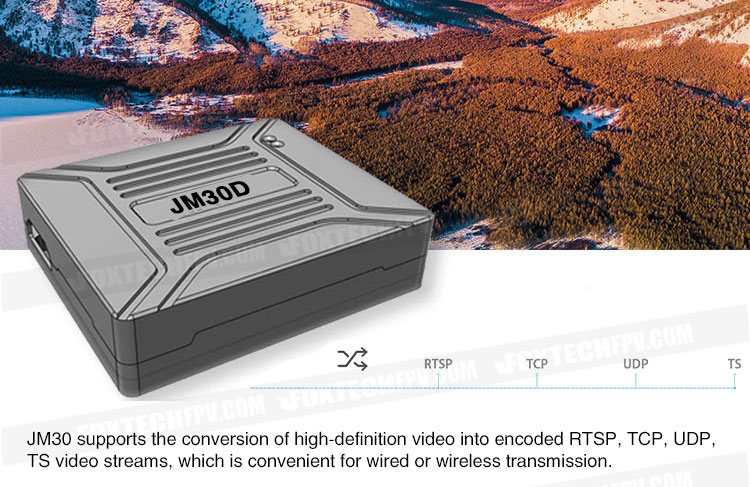

- Transport Protocol: RTSP、UDP、TCP、TS stream

Power Range

- JM30E: 9~28 V

- JM30D: 9~28 V

Power consumption

- JM30E ≤ 2W

- JM30D ≤ 1.5W

Environment

- Working temperature: -40℃～+70℃

- Storage temperature: -40℃～+85℃

- Humidity: 5~95%, non-condensing

Your Purchase Includes:

1x JM30E Encoder Module(HDMI)

1x JM30D Decoder Module(HDMI)

2x Dual 7 Pin cable

1x 2Pin opening cable

2x 3Pin opening cable

2x 7Pin transfer cable
