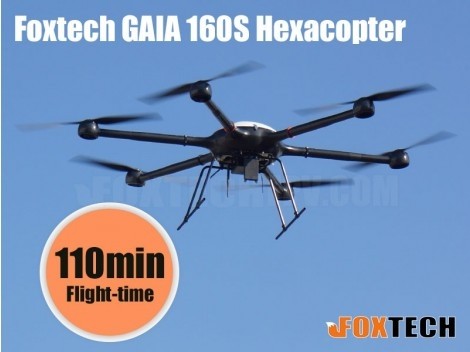

FOXTECH GAIA 160S Hexacopter

 Note: GAIA 160S hexacopter is out of production and the substitute drone is RHEA 160.

GAIA 160S is a new released battery-powered drone with 110 minutes duration, the fuselage of which is smaller and lighter than other GAIA 160 series drones' fuselage, so the efficiency is greatly increased. The specially designed fuselage and full carbon fiber structure make the drone lighter and stronger, even more durable than GAIA Elite version.

GAIA 160S features small volume, simple structure and high strength. The quick-detach design of the arm and quick-detach landing gear make it convenient for storage and easy to transport.

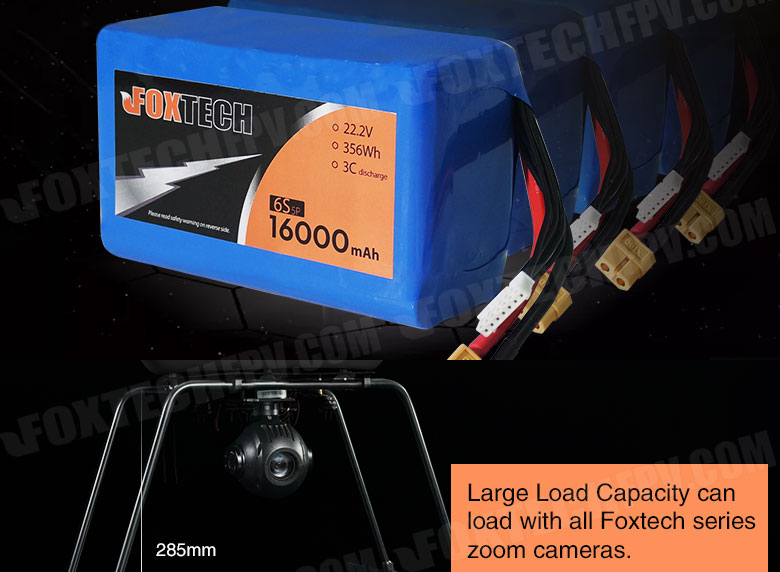

GAIA 160S hexacopter is equipped with high efficiency power system including U8II kv85 motor, flame 60A ESC and Supreme 2985 propeller, by using the new supreme 2985 peopeller the efficiency is incresed by 5%. The fuselage internal space is large enough for four 6s 16000mah li-ion batteries. The flight time of GAIA 160S with four 6s 16000mah batteries is about 110 min, and the max take-off weight is about 17kg.

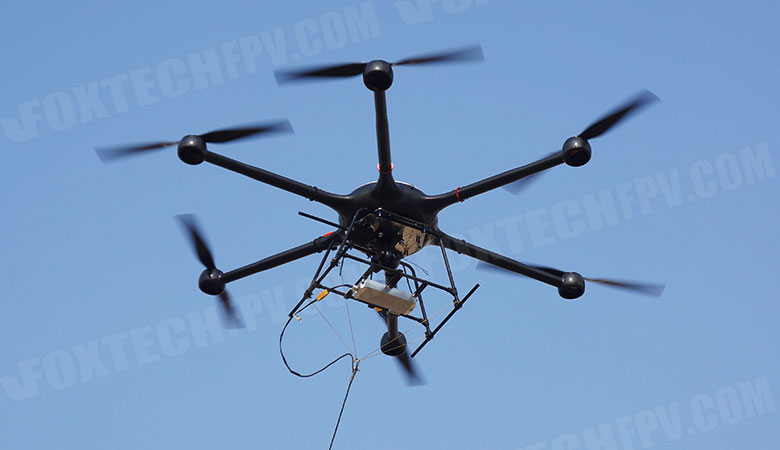

The light fuselage, big wheelbase and powerful system make GAIA 160S a high efficiency drone with long duration and better loading capacity. it is a high efficiency battery-powered flying platform for aerial photography, surveillance, inspection and survey etc.

GAIA 160S loading with our 36x zooming camera and 3-axis gimbal(about 950g), equipped with VDC long range video transmission system, can be used for long range inspection, the video transmission distance can reach 15km, and the working time is about 88 minutes.  GAIA 160S also can load 3DM V3 Oblique Camera to do mapping jobs instead of GAIA 160 hybrid drone, the max flight time is about 98 minutes.

Specifications:

Version: GAIA 160S
Wheelbase: 1550mm
RTF Weight: 5.8kg(no battery)
Max Take-off Weight: 17kg
Flight Time: 110 min. (no payload)
Max. Flying Speed: 14m/s
Max Lifting Speed: 5m/s
Max Wind Resistance: 13.8m/s
Battery: 4x 6s 16000mah(li-ion battery)

Your Purchase Includes:

RTF Combo:

-1x GAIA 160S Frame
-6x T-MOTOR U8II KV85 Motor
-6x T-MOTOR Flame 60A ESC
-3x Foxtech Supreme CF Propeller 2985
-1x CUAV V5+ Flight Controller with CUAV NEO V2 Pro GNSS or Pixhawk Cube Orange Standard Set with Here 2 GNSS
-1x DA16S+ Radio Controller
-1x Assembling, tuned and Flying Test Service

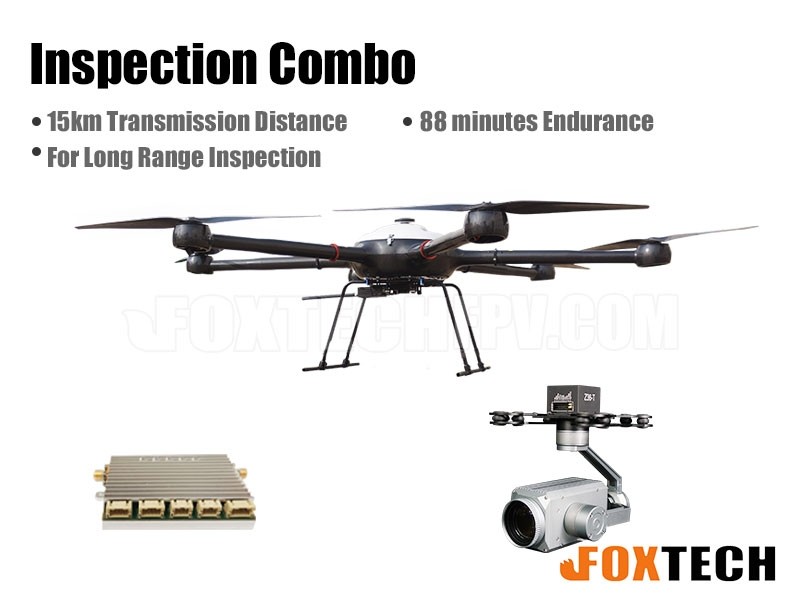

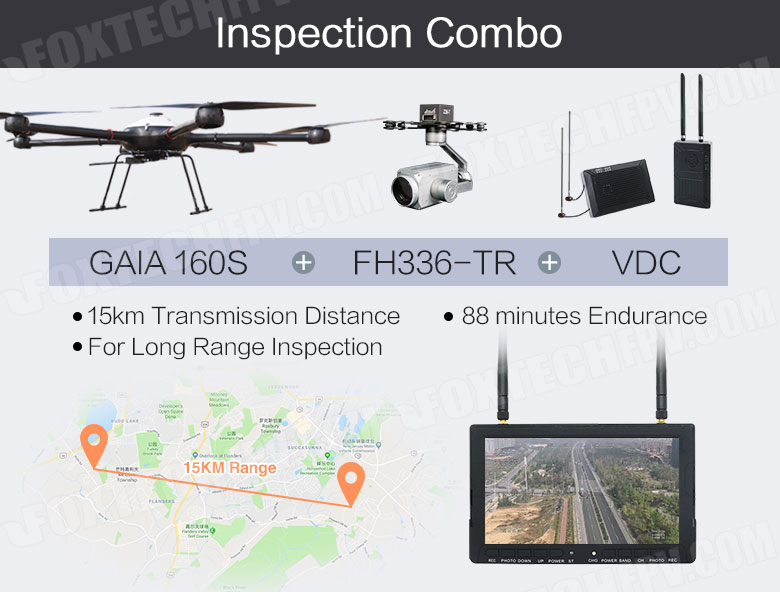

Inspection Combo:

-1x GAIA 160S Frame
-6x T-MOTOR U8II KV85 Motor
-6x T-MOTOR Flame 60A ESC
-3x Foxtech Supreme CF Propeller 2985
-1x CUAV V5+ Flight Controller with CUAV NEO V2 Pro GNSS or Pixhawk Cube Orange Standard Set with Here 2 GNSS
-1x DA16S+ Radio Controller
-1x VD Pro 15km Video/Data Wireless Transmission System
-1x FH336-TR 36X Optical Zoom Camera with 3-axis Gimbal
-1x Assembling, tuned and Flying Test Service

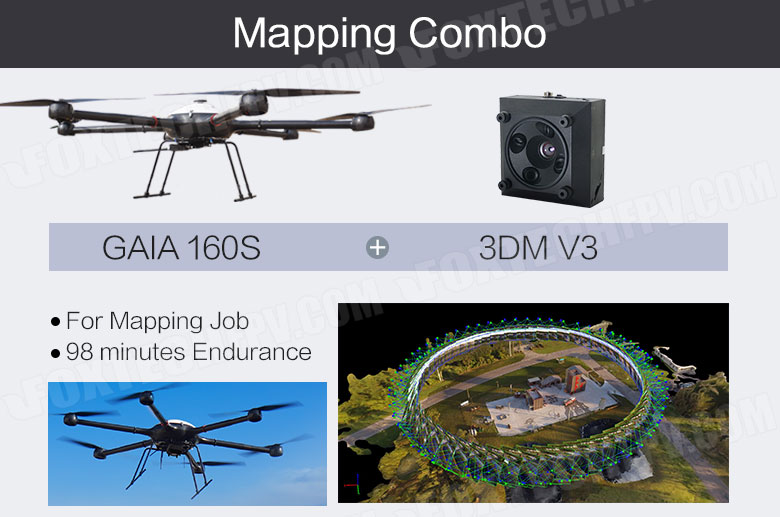

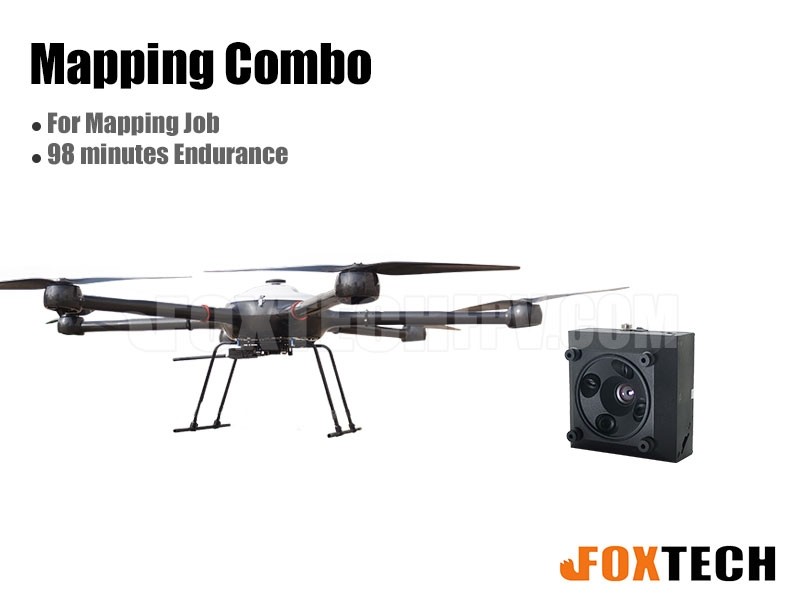

Mapping Combo:

-1x GAIA 160S Frame
-6x T-MOTOR U8II KV85 Motor
-6x T-MOTOR Flame 60A ESC
-3x Foxtech Supreme CF Propeller 2985
-1x CUAV V5+ Flight Controller with CUAV NEO V2 Pro GNSS or Pixhawk Cube Orange Standard Set with Here 2 GNSS
-1x DA16S+ Radio Controller
-1x FOXTECH 3DM V3 Oblique Camera for Mapping and Survey
-1x Assembling, tuned and Flying Test Service

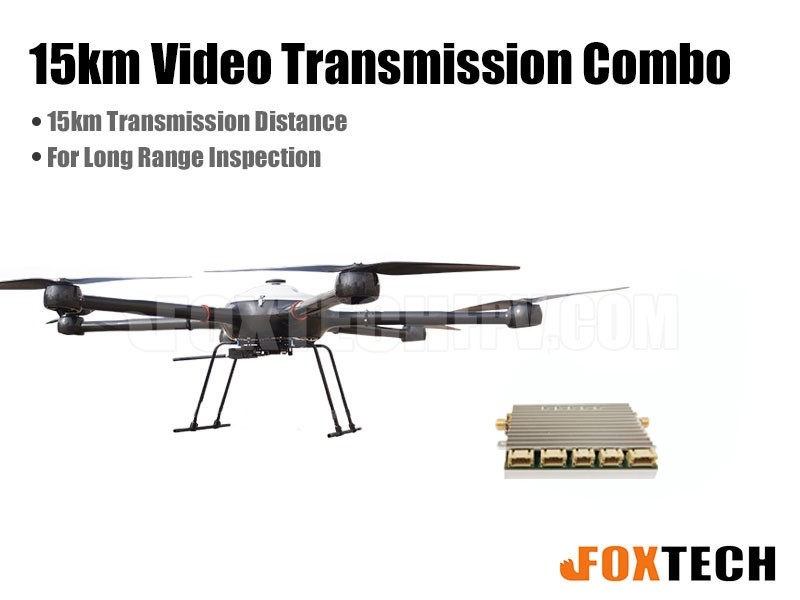

15km Video Transmission Combo:

-1x GAIA 160S Frame
-6x T-MOTOR U8II KV85 Motor
-6x T-MOTOR Flame 60A ESC
-3x Foxtech Supreme CF Propeller 2985
-1x CUAV V5+ Flight Controller with CUAV NEO V2 Pro GNSS or Pixhawk Cube Orange Standard Set with Here 2 GNSS
-1x DA16S+ Radio Controller
-1x VD Pro 15km Video/Data Wireless Transmission System
-1x Assembling, tuned and Flying Test Service

Option:

Foxtech 6S 30000mAh Li-ion Battery

Foxtech 6S 16000mAh Li-ion Battery

RB20 Signal Relay

Ground Station

3DM V3 Oblique Camera for Mapping and Survey
