Foxtech 8.4V 7A HV BEC with 1500Vdc high I/O isolation voltage and 88% conversion efficiency features small size and low noise. It supports an input voltage between 36V-72V, and 8.32V-8.48V output voltage. It can be used for fixed-wing VTOL UAVs such as Great Shark 330, AYK-250 etc.

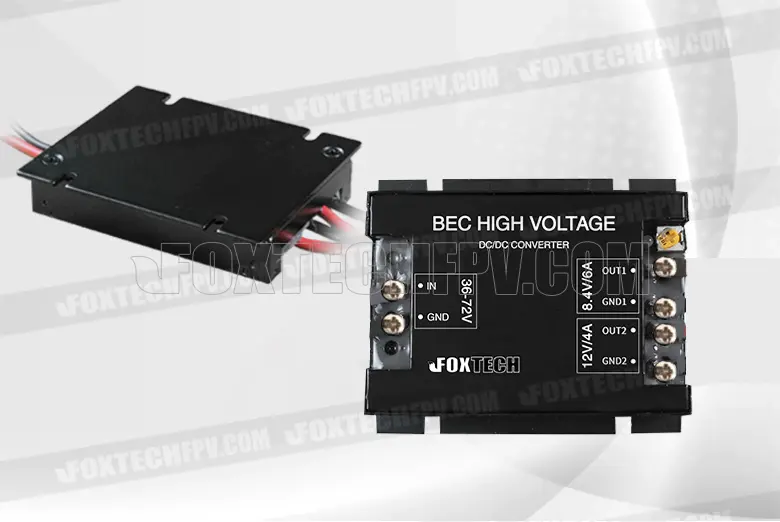

Foxtech 8.4V 6A/12V 4A HV BEC has a 1500Vdc high I/O isolation voltage and 85% conversion efficiency. It supports 8.4V&12V dual output from 36V-72V input. With short-circuit protection, it is much safer for the device.
Foxtech 12V 10A HV BEC has 1500Vdc high I/O isolation voltage, 88% conversion efficiency and 20MHz low noise. It supports 36V-72V input, and delivers to 12V output. With short-circuit protection, it is much safer for the device.
Foxtech 12V 6A/24V 3A HV BEC has 1500Vdc high I/O isolation voltage and 85% conversion efficiency. It supports 12V&24V dual output from 36V-72V input. With short-circuit protection, it is much safer for the device.

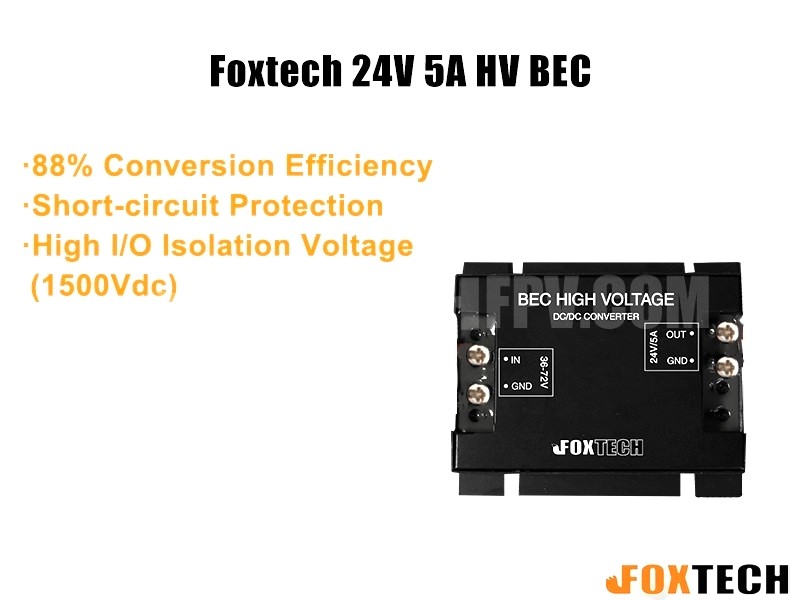

Foxtech 24V 5A HV BEC has 1500Vdc high I/O isolation voltage, 88% conversion efficiency and 20MHz low noise. It supports 36V-72V input voltage, and delivers to 24V output voltage. With short-circuit protection, it is much safer for the device.
Specification:
-Output voltage: 8.4V
-Input voltage: 36V-72V
-Output power: 60W
-Max output current: 7A

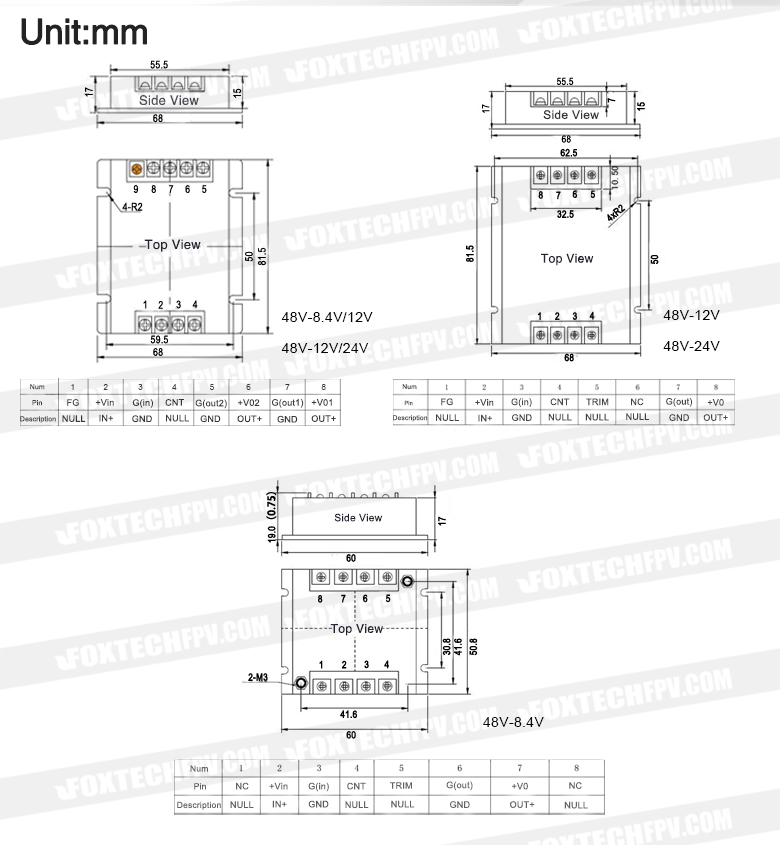

-Size: 60mm*50.8mm*19mm (L*W*H)
-Working temperature:-40℃~ +85℃
-Weight: 90g
-Wire length: 30cm
Specification:
-Output voltage 1: 8.4V
-Output voltage 2: 12V
-Input voltage: 36V-72V
-Output power: 100W
-Max output current 1: 6 A
-Max output current 2: 4 A
-Size: 81.5mm*68mm*17mm (L*W*H)
-Working temperature:-40℃~ +95℃
-Weight: 200g
-Wire length: 30cm
Specification:
-Output voltage: 12V
-Input voltage: 36V-72V
-Output power: 120W
-Max output current: 10A
-Size: 68mm*50mm*17mm (L*W*H)
-Working temperature:-40℃~ +95℃
-Weight: 200g
-Wire length: 30cm
Specification:
-Output voltage 1: 12V
-Output voltage 2: 24V
-Input voltage: 36V-72V
-Output power: 150W
-Max output current 1: 6 A
-Max output current 2: 3 A
-Size: 81.5mm*68mm*17mm (L*W*H)
-Working temperature:-40℃~ +95℃
-Weight: 200g
-Wire length: 30cm
Specification:
-Output voltage: 24V
-Input voltage: 36V-72V
-Output power: 120W
-Max output current: 5A
-Size: 68mm*50mm*17mm (L*W*H)
-Working temperature:-40℃~ +95℃
-Weight: 200g
-Wire length: 30cm
