THEA 140 Hybrid Pro Industrial Drone

SKU: S2001023

Availability: In stock

Weight:1g

Volume Weight: 106KG

$7,429.00

Reward points Earn your 7429 reward points.

$7,429.00
Qty:

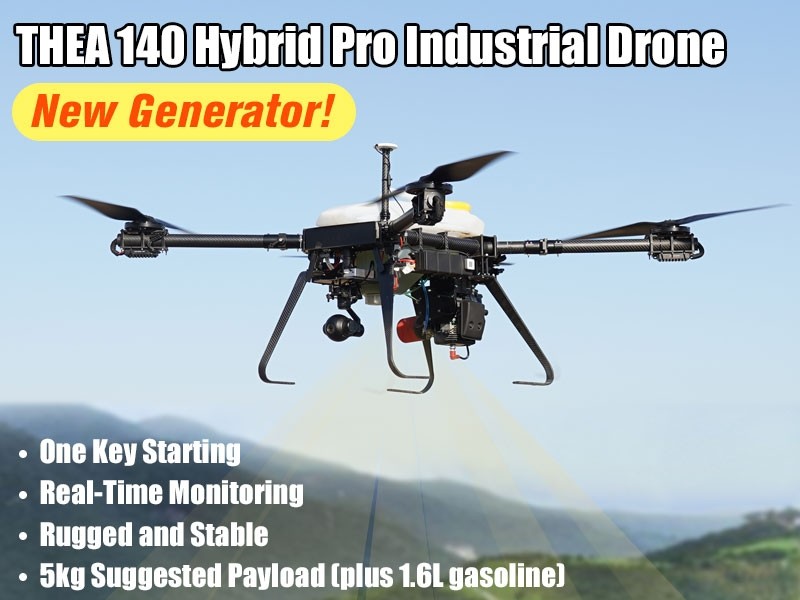

THEA 140 Hybrid Pro is a quadcopter for industrial application. Made of carbon fiber, it features high ruggedness, compact folding arms and electric landing gears and 5h ultra-long endurance, empowering you to overcome any challenge, safely and efficiently.

THEA 140 Hybrid Pro adopts two-sided cabinets for placing the DJI A3 flight controller, BEC or more, leaving the central space unequipped to achieve lighter weight and thus longer endurance.

The integrated generator-gasoline hybrid power system sustains 5 hours of ultra-long endurance with 400g payload and a 2000W manual start generator.

Equipped with DJI Lightbridge 2, it achieves a fairly long-distance signal transmission, allowing for more possibilities for those who demand aircrafts with long range control and endurance to perform tasks.

With the advanced propulsion system, the payload capacity is greatly enhanced to support 5kg of task loads such as cameras, a PPK system, LED light or it can even be used in delivering vital supplies.

The newly-designed folding arms, removable fuel tank and one set of retractable landing gears save you the space and strength to store and deliver it and at the same time, ensure the gimbal camera a better camera view.

Highly rugged and stable, THEA 140 Hybrid Pro is made of full carbon fiber reinforced plate, enabling it to stand against 8m/s strong wind

An all-in-one three-position switch is in charge of three running modes of the generator, which is on, idle and off.

Two backup batteries are placed in the battery compartments that are strapped to two sides of THEA, in case the power goes out.

Being highly practical, tasks like inspection, police patrol, transmission line stringing, mapping, surveillance, searching and rescue would be no hard jobs by loading up one of the series of task-load cameras like Argus V2 3D mapping camera, FH336-TR, DJI Zenmuse Z30, Bi-focus thermal camera, etc, which share some of their distinctive functions of object tracking or thermal imaging.



Specification:

Version: THEA 140 Hybrid Pro Version

Diagonal Wheelbase: 1.4m

Unfolded Dimensions: 100cm*100cm*50cm

Folded Dimensions: 70cm*70cm*50cm

Material: Carbon Fiber

Frame Weight: 3.8kg (with landing gears and 11L fuel tank)

RTF Weight: 12.8kg (with 2x 6s 5000mAh emergency batteries, no gasoline)

Max Take-off Weight(at an altitude of 0m): 19kg (1000m/17kg; 2000m/15kg)

Suggested Max Payload: 5kg (excluding 1.6L gasoline)

Flight Time: 5h (400g payload)

Max Flying Speed: 14m/s

Max Lifting Speed: 4m/s

Max Descent Speed: 3m/s

Max Angle of Bank: 25°

Suggested Flight Altitude: ≤500m

Suggested Take-off Altitude: ≤2000m

Working Voltage: 48V

Fuel Consumption: 750g/kw.h

Generator Weight: 4kg

Generator Output: 1.8kw(continuous), 2kw(max)

Working temperature: -20℃-40℃



Your Purchase Includes:



No FC Combo:

1x THEA 140 Hybrid Pro Frame

2x Foxtech 6S 5000mAh Lipo battery(spare power supply)

4x Motor

4x ESC

2x(pair) 30 inch Propeller

1x Foxtech GPS Folding Antenna Mount Holder

1x 11L Fuel Tank

1x Electric Landing Gear & 1x Fixed Landing Gear

1x Foxtech NOVA-2000 Manual Start Generator for Hybrid Drones

1x NOVA-2000 Generator Maintenance Kit

1x Liquid Level Display



A3 + Lightbridge 2 RTF Combo:

1x THEA 140 Hybrid Pro Frame

2x Foxtech 6S 5000mAh Lipo battery(spare power supply)

4x Motor

4x ESC

1x DJI A3 Flight Controller

1x DJI Lightbridge 2

2x(pair) 30 inch Propeller

1x Foxtech GPS Folding Antenna Mount Holder

1x 11L Fuel Tank

1x Electric Landing Gear & 1x Fixed Landing Gear

1x Foxtech NOVA-2000 Manual Start Generator for Hybrid Drones

1x NOVA-2000 Generator Maintenance Kit

1x Assembly and Fly Test Package

1x Liquid Level Display



A3 + DA16S+ RTF Combo:

1x THEA 140 Hybrid Pro Frame

2x Foxtech 6S 5000mAh Lipo battery(spare power supply)

4x Motor

4x ESC

1x DJI A3 Flight Controller

1x Foxtech DA16S+ 16-Channel Radio Controller

1x Expansion Module for DJI Flight Controller

2x(pair) 30 inch Propeller

1x Foxtech GPS Folding Antenna Mount Holder

1x 11L Fuel Tank

1x Electric Landing Gear & 1x Fixed Landing Gear

1x Foxtech NOVA-2000 Manual Start Generator for Hybrid Drones

1x NOVA-2000 Generator Maintenance Kit

1x Assembly and Fly Test Package

1x Liquid Level Display



TAURUS-2 RTF Combo(with DL900 Datalink):

1x THEA 140 Hybrid Pro Frame

2x Foxtech 6S 5000mAh Lipo battery(spare power supply)

4x Motor

4x ESC

1x TAURUS-2 Flight Control System

1x DL900 Datalink

2x(pair) 30 inch Propeller

1x Foxtech GPS Folding Antenna Mount Holder

1x 11L Fuel Tank

1x Electric Landing Gear & 1x Fixed Landing Gear

1x Foxtech NOVA-2000 Manual Start Generator for Hybrid Drones

1x NOVA-2000 Generator Maintenance Kit

1x Assembly and Fly Test Package

1x Liquid Level Display



Optional:

1x Remote Controller Channel Expansion Kit for Lightbridge 2

1x Argus V2 3D Modeling Oblique Camera

1x Foxtech Bi-Focus 10X Optical Zoom 320x240 IR Thermal Camera with 3-axis Gimbal

1x Foxtech FH336-TR 36X Optical Zoom Camera with 3-axis Gimbal

1x 24GHz Millimeter-Wave Obstacle Avoidance Radar

1x Reach Emlid PPK System
