Important Notice!
Our company's unmanned aerial vehicle (UAV) products only support domestic transactions within China. If your company intends to export UAV products from China, it is necessary to comply with Chinese regulations. Furthermore, the products cannot be used for military, terrorist, or war purposes.

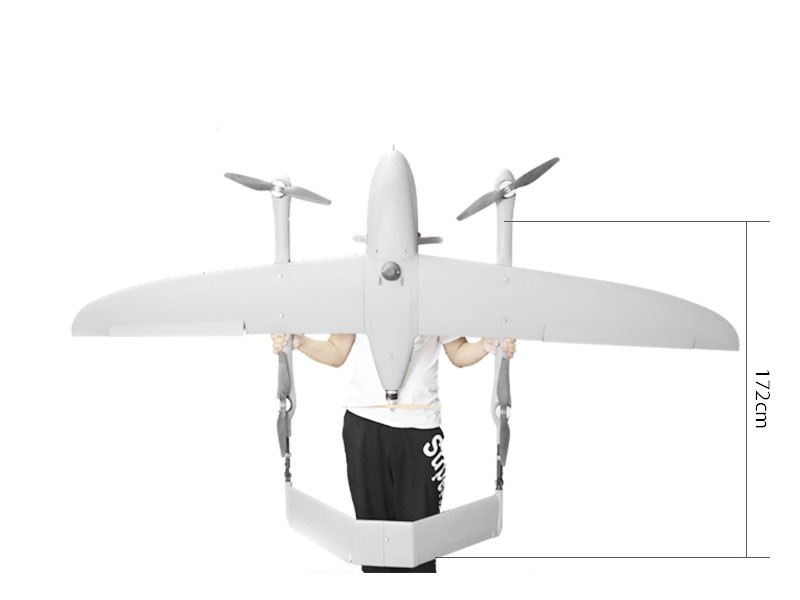

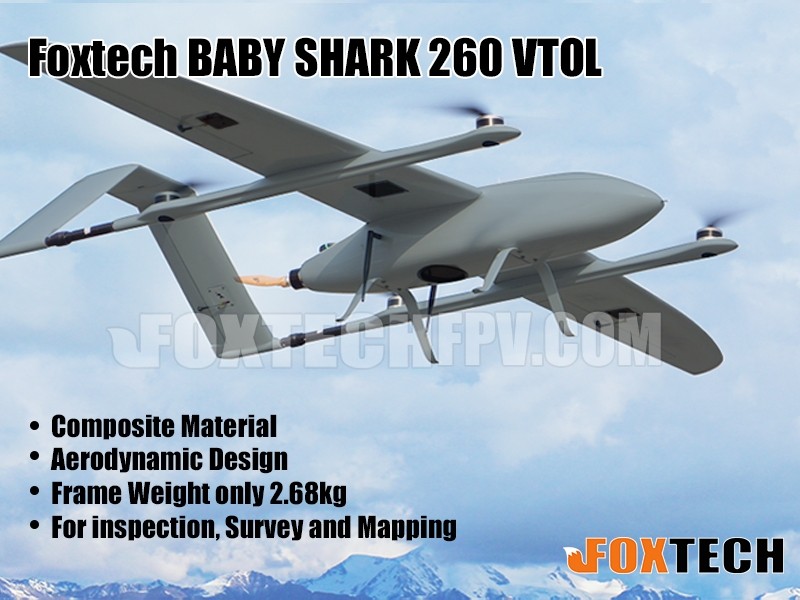

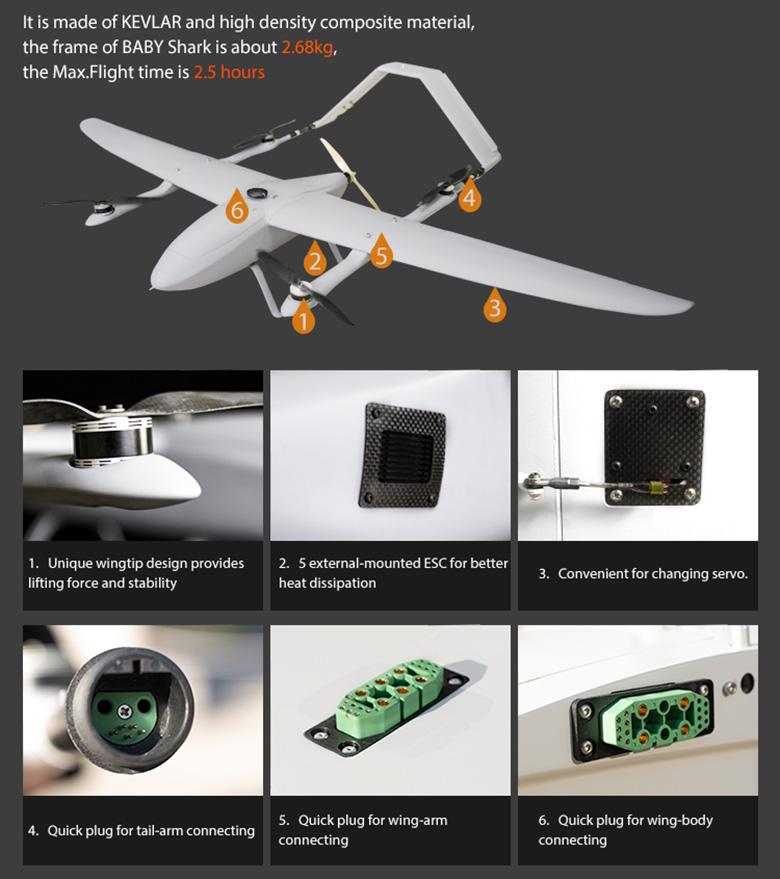

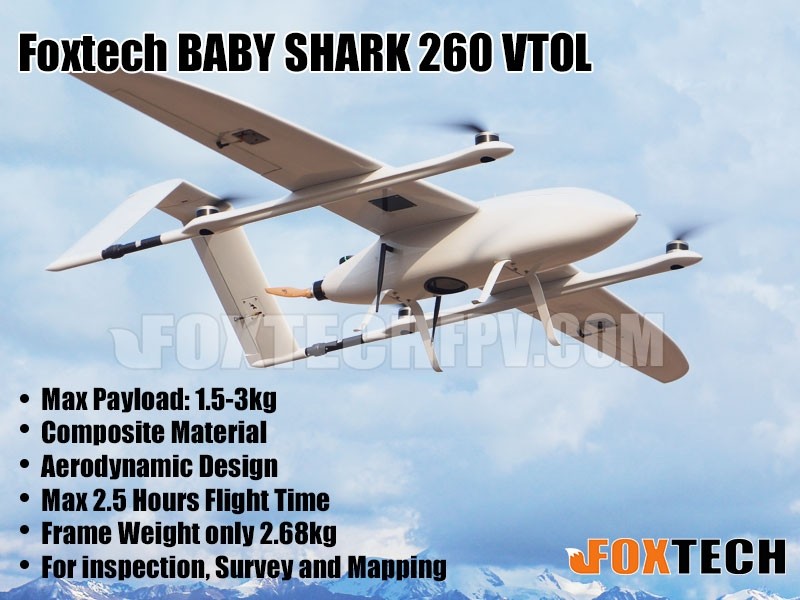

BABY SHARK features a highly advanced aerodynamic design. It is made of composite materials, which features high strength and lightweight. The fuselage is big enough to hold a flight controller, batteries or other devices.
It can take off and land vertically with only small areas needed. The frame of BABY SHARK is only 2.7kg, and max take-off weight is 13kg, the stall speed of the BABY SHARK is 16m/s, the highest speed is about 110km/h.
BABY SHARK can perform long range inspection, survey and mapping etc.
Note: BABY SHARK Matt Grey Version is out of stock. With / without CG measuring ring fuselage will be shipped randomly.
Note: For our valued customers from Jordan interested in purchasing our drones, please kindly contact our distributor directly at [email protected]. We appreciate your understanding and thank you immensely for considering our products.
Specification:
Version: BABY SHARK 260 VTOL
Color: White; Matt Grey
Wingspan: 2500mm
Length: 1440mm
Material: Composites
Frame Weight: 2.7kg
Basic Empty Weight: 5.6kg (no battery)
Max. Take-off Weight: 0~1500m/13kg; 1500m~3000m/11kg
Max Cruising Speed: 110km/h
Suggested Cruising Speed: 21-22m/s
Stall Speed: 16m/s
Max Bank Rate: 30°
Suggested Take-off Altitude: 0~3000m
Take-off/Landing: VTOL
Fixedwing/VTOL Working Voltage: 24V/48V
Your Purchase Includes:
Pixhawk Cube Orange RTF (DA16S+):
1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode
1x (pair) Spare Propellers for VTOL Mode(for free)
1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor
1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x ASSAN UBEC-8A
1x Hobbywing UBEC
1x Power Monitor Module
1x Pixhawk Cube Orange Standard Set with Here 3 GNSS
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service
TAURUS-2 RTF (DL900 Datalink):
1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode
1x (pair) Spare Propellers for VTOL Mode(for free)
1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor
1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x UBEC

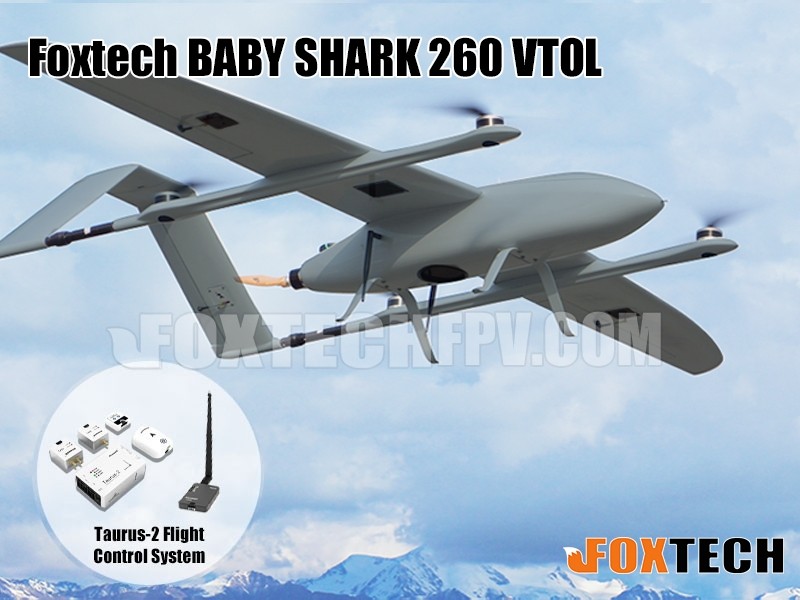

1x Taurus-2 Flight Control System for VTOL
1x DL900 Datalink
1x Carrying Case
1x Assembling, tuned and Flying Test Service
V5+ RTF (DA16S+):
1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode
1x (pair) Spare Propellers for VTOL Mode(for free)
1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor
1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x UBEC
1x Power Monitor Module

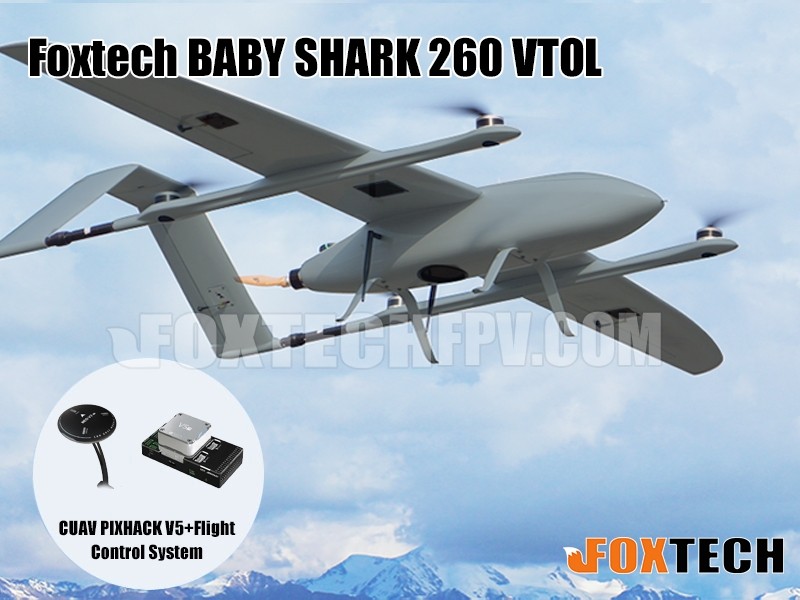

1x V5+ Flight Controller with NEO 3 Pro GNSS
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service
V5+ RTF (T12):
1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode
1x (pair) Spare Propellers for VTOL Mode(for free)
1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor
1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x UBEC
1x Power Monitor Module
1x V5+ Flight Controller with NEO 3 Pro GNSS
1x T12 12-Channel Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service
X7 Pro RTF (DA16S+):
1x Foxtech BABY SHARK 260 VTOL Frame
4x Motor for VTOL Mode
4x ESC for VTOL Mode
2x (pairs) Propellers for VTOL Mode
1x (pair) Spare Propellers for VTOL Mode(for free)
1x High Efficiency Tail Motor
1x Tail ESC
1x Propeller CW for Tail Motor
1x Spare Propeller CW for Tail Motor(for free)
4x Servo
1x AEROFOX CAN Airspeed & Compass
1x ASSAN UBEC-8A
1x Hobbywing UBEC
1x Power Monitor Module
1x X7 Pro Flight Controller with NEO 3 Pro GNSS
1x DA16S+ Radio Controller
1x Carrying Case
1x Assembling, tuned and Flying Test Service
Option:
Baby Shark 260 VTOL Spare Parts(Matt Grey)
DA16S+ Radio Controller for AheadX Flight Controller (for Taurus-2 Combo)
ASHIL II Flight Simulation System (for Taurus-2 Combo)
Mission Planner Menu Items Setting Tips
